Home > 10S-15S Software BMS

  • 12S-15S 80A 100A 120A smart solution smart bms pcm with android Bluetooth app UART bms wi software (APP) monitor
  • 12S-15S 80A 100A 120A smart solution smart bms pcm with android Bluetooth app UART bms wi software (APP) monitor
12S-15S 80A 100A 120A smart solution smart bms pcm with android Bluetooth app UART bms wi software (APP) monitor    12S-15S 80A 100A 120A smart solution smart bms pcm with android Bluetooth app UART bms wi software (APP) monitor

12S-15S 80A 100A 120A smart solution smart bms pcm with android Bluetooth app UART bms wi software (APP) monitor

  • Product Model:BMS-230S020
  • Can Customized: 12S-15S
  • Continuous Current:100A/120A
  • Soft ware: External UART RS232 RS485

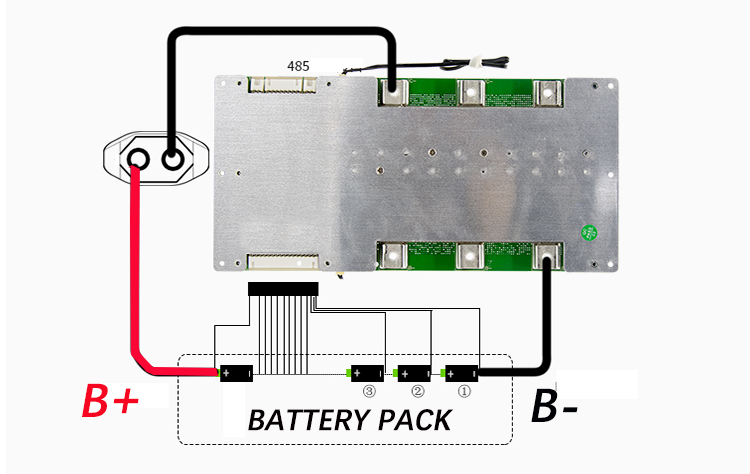

  • Product description:Size:230*120*12mm UART to USB module or to Bluetooth to RS485,USB should use together with the board. 1.UART RS232 to USB module connect to PC by USB. 2.Bluetooth module can connect to smar
  • INQUIRY

Main Features :

1)Smart BMS with app or PC module;
2) Balance & Balance wires attached;
3) Multi Temperature switches;
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
6) With UART interface, can support PC or smart phone.
7) Over charge and over discharge can set by software APP (Android version).

8) Welcome OEM

Adjustable Parameters:
1.Balance voltage setup: Balance voltage Range:  3.3-4.2V
2.Over-voltage voltage setup: Charge voltage Range :   3.6-4.3V
3.Under-voltage voltage setup: Discharge voltage Range :  2.0-3.3V
4.Over Charge/Discharge current Setup...

APP Parameters reference:



PC Parameters interface:
